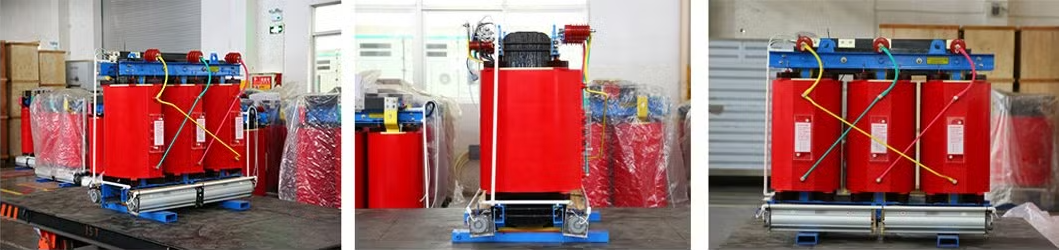

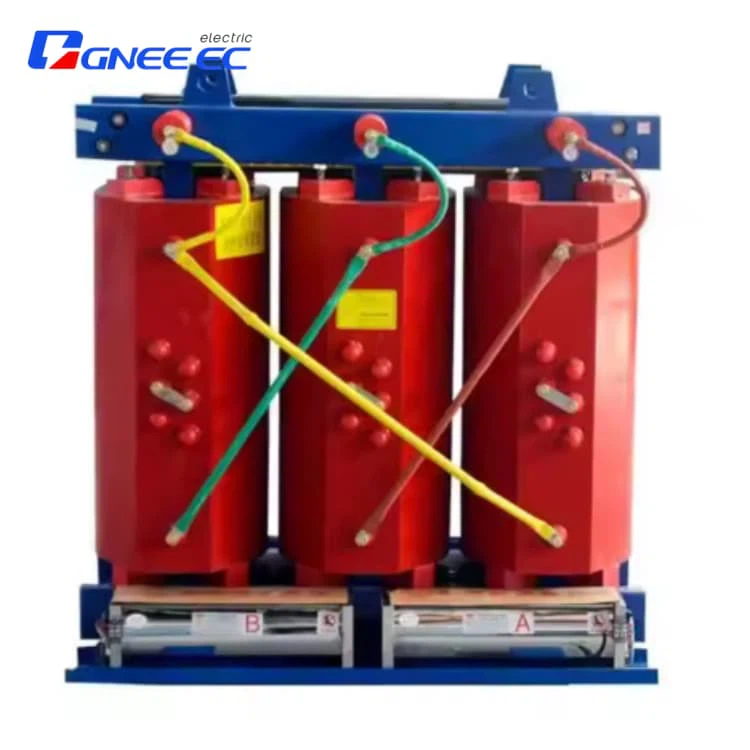

100KVA/10KV Indoor Power Transformer

Name: China 100KVA/10KV Indoor Power Transformer Manufacturers Suppliers Factory - Low Price
Brand: GNEE
SKU: 275643419

Product Name: 100KVA/10KV Indoor dry type transformer
Capacity: 100KVA
Voltage: 10KV
Delivery Year: 2024

Dry type distribution transformer design eliminates fire risks and complies with Brazil's stringent environmental regulations, avoiding oil-related hazards.
Cast resin dry type transformer uses flame-retardant epoxy resin insulation, certified by INMETRO for stable operation in extreme temperatures.
Indoor dry type transformer compact structure optimizes space usage, enabling rapid grid integration in limited indoor environments.

Voye rechèch

Chat kounye a

Gen kesyon? Reprezantan lavant Gnee ki disponib pou chat ap viv kounye a

Voye e-mail:sales@gneeelectric.com

Tel:+8615824687445

The Dry type distribution transformer's oil-free design ensures zero explosion or fire risks, meeting global RoHS and IEC standards. Its Cast resin dry type transformer epoxy resin casting achieves F-class insulation, operating reliably between -30℃ to 120℃, even under heavy loads.

The Cast resin dry type transformer optimizes magnetic circuit design and heat dissipation, reducing copper losses to industry-leading levels. Its full-load energy efficiency reaches 98.5%, significantly lowering long-term energy costs.

The Indoor dry type transformer adopts modular design for seamless integration into confined spaces, requiring no additional ventilation systems. Universal interfaces ensure compatibility with standard electrical infrastructure, enabling fast deployment in commercial buildings, hospitals, and industrial facilities.

						No-load loss(W)	On-load loss(W)(75ºC)
						No-load loss(W)	On-load loss(W)(75ºC)		*LHW*
SC(B)11-30/10	30	6 10 10,5 11	±5	0.4	Yyn0 Dyn11	180	560	4	880660940	400*400
SC(B)11-50/10	50					260	730		830690990	400*400
SC(B)11-80/10	80					320	1120		8606901020	400*400
SC(B)11-100/10	100					350	1370		9007201060	550*550
SC(B)11-125/10	125					430	1620		9407401080	550*550
SC(B)11-160/10	160					480	1900		12207701100	550*550
SC(B)11-200/10	200					540	2100		12407801170	550*550
SC(B)11-250/10	250					650	2560		13908001200	550*550
SC(B)11-315/10	315					760	3010		14108201230	550*550
SC(B)11-400/10	400					780	3690		15008601270	660*660
SC(B)11-500/10	500					840	4300		15208701320	660*660
SC(B)11-630/10	630					1040	5160	6	16008901410	660*660
SC(B)11-800/10	800					1240	6290		16609501460	820*820
SC(B)11-1000/10	1000					1430	7380		17609701500	820*820
SC(B)11-1250/10	1250					1500	8830		180010901620	820*820
SC(B)11-1600/10	1600					1710	10580		187011001700	820*820
SC(B)11-2000/10	2000					2200	12810		198011801800	1070*1070
SC(B)11-2500/10	2500					2650	15080		209012601930	1070*1070

Select a dry, well-ventilated area with flat ground. Lay insulating pads for base support.

Use Cast resin dry type transformer-specific mounting brackets to secure the unit horizontally.

Distinguish high-voltage (10KV) and low-voltage terminals per Dry type distribution transformer specifications.

Disconnect power, verify no current, then connect wires with insulation sleeves. Grounding must be directly linked to a common grounding busbar.

Run unloaded for 2 hours, monitoring temperature rise (<=80K) and noise (<65dB).

Gradually load to full capacity and run for 4 hours to confirm no unusual vibration or odor.

100KVA/10KV Indoor Power Transformer

strictly follows the comprehensive acceptance testing process to ensure that the performance of each device meets the standards. Our products and services have been successfully applied in more than 50 countries and regions around the world. As a trusted global industrial partner, we are always committed to helping customers achieve their sustainable development vision through high-quality products and full-process services.

• Pre-sales: Free technical consulting, drawing review, and installation training.
• After-sales:
Global warranty for 2 years; 5-year warranty on core components.
7×24-hour remote support, fault response within <24 hours.
Operation manual provided.

30kVA Dry-type Three-Phase Power Transformer with Voltage Control

Q1: What application scenarios is the Oil Immersed Transformer suitable for?

A: It is suitable for high-voltage transmission and distribution, industrial production facilities, substations, and other environments that require high load capacity and excellent heat dissipation performance.
Technical Advantage: With 18 years of industry experience, we use a three-dimensional wound core technology to reduce no-load losses by 15% compared to traditional lamination processes, while achieving ±0.5mm precision stacking to ensure long-term stable operation.
User Case: In a large steel plant expansion project, our oil immersed transformer (5000kVA) ensured the stability of continuous power supply thanks to its high load tolerance and low loss characteristics.

Q2: What parameters should be considered when choosing a Dry-type Transformer?

A: Key parameters include rated capacity (50kVA-5000kVA), voltage level, and temperature rise limits.
Core Advantage: We use epoxy resin + fiberglass insulation materials, with a fire resistance rating reaching UL94 V-0 standard, making it ideal for high-safety environments such as shopping malls and hospitals.

Q3: How does an Amorphous Alloy Transformer reduce electricity costs in remote areas?

A: By using amorphous alloy tape cores, no-load losses are reduced by 50%-70% compared to traditional silicon steel transformers, making them particularly suitable for rural grids with fluctuating loads.
